Sealing Rings Cartridge / Separator Piston
Piston Rod Seal / Cartridge for SHOWA 49
O-ring for KYB free piston 110260000901
Outer diameter: 36.00 mm
Inner diameter: 29.00 mm
Height: 3.45 mm
Showa SFF-Air Cartridge O-Ring 14.00 x 24.50 x 6.00 mm
Repair kit for the WP AER fork (air fork) from 2023 onward
COMPLETE CARTRIDGE HEAD FOR THE AIR SIDE OF THE WP48 AER FORK.
THE TWO GASKETS, 48601439 AND 48601440, ARE ALREADY PRE-INSTALLED. THIS SIGNIFICANTLY REDUCES INSTALLATION EFFORT.
Nominal dimensions:
12x25x6
Nominal dimensions:
10 x 16 x 35 mm
Nominal dimensions:
12 x 18 x 3.5 mm
(Showa)
ALL WP CLOSED CARTRIDGE MODELS FROM 2010 ONWARD
Nominal dimensions:
12 x 19 x 4 mm
Nominal dimensions:
13 x 22.5 x 5 mm
(SHOWA SSF AIR)
Nominal dimensions:
13 x 23 x 5 mm
(SHOWA SSF AIR)
1 set (2 pieces)
1 set (2 pieces)
Nominal dimensions:
12.5 x 18 x 3.5 mm
Nominal dimensions:
12.5 x 18.5 x 3.5 mm
Nominal dimensions:
12.5 x 22.5 x 5 mm
Nominal dimensions:
12.5 x 22 x 5 mm
ATTENTION:
Support ring required!
-> Item No. HKRN1-352-H0 (also available here in the store)
SEAL FOR THE PISTON ROD ON THE AIR SIDE OF THE WP48 AER
Nominal dimensions:
20.5 x 31 x 5 mm
(SHOWA SFF AIR 2015->)

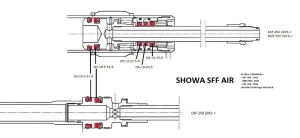

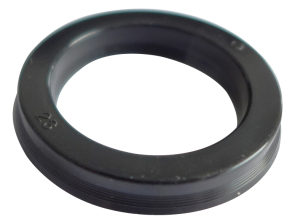

Nominal dimensions:
18.5 x 31 x 6 mm
(SHOWA SFF AIR 2015–)
SEAL RING FOR PISTON ROD/CARTRIDGE WP 4CS FORK
14 x 24 x 5 mm
Fits, among others:
SHOWA 49 Fork (Cartridge Seal)
SOQI shock absorber (seal head)
Nominal dimensions:
10 x 14.5 x 2.8 mm
Nominal dimensions:
10 x 14 x 2.5 mm
Nominal dimensions:
10 x 20 x 5 mm
Nominal dimensions:
10 x 20 x 6 mm
Nominal dimensions:
12 x 16 x 2.5 mm
(SHOWA SFF AIR 2015–)
Nominal dimensions:
35 x 38 x 2 mm (D x W x H)
Nominal dimensions:
10 x 13.5 x 2 mm
SEAL FOR THE PISTON ROD ON THE AIR SIDE OF THE WP48 AER FORK
SEAL FOR THE PISTON ROD ON THE OIL SIDE OF THE WP48 AER FORK
21-piece repair kit for the WP AER fork (air fork)
1 PIECE
Nominal dimensions:
31 x 34 x 2 mm (D x W x H)
2 PIECES
Nominal dimensions:
10 x 14.5 x 2.3 mm
Nominal dimensions:
12.5 x 17.2 x 2.3 mm
Cartridge head for the WP Closed Cartridge (includes bushing and O-ring)
The matching sealing ring is item no.: OS-12-19-4
-> PROVIDES SIGNIFICANTLY BETTER RESPONSE FROM THE AIR FORK.
-> IMPROVES THE AIR FORK'S RESPONSE.
-> INCREASES RELIABILITY AND SEALING PERFORMANCE
Sealing Rings Cartridge / Separator Piston: engineered for motocross and enduro riders. Strong materials, precise fitment and reliable performance.
